Sand making machine parameters:

Model	Maximum feed size (mm)	Rotor diameter (mm)	Rotating speed (m/s)	Motor Power(Kw)	Processing capacity(t/h)	Weight (Kg)	Dimensions (mmmmmm)
HX-1000	30	1040	60	132×2	180	17800	5170X2880X3150
				160×2	210
			70	110×2	130
				132×2	170
HX-1200	35	1235	60	132×2	230	18500	5170X2880X3150
				160×2	260
				185×2	280
			70	132×2	200
				160×2	240
				185×2	260

Shaper parameters:

Model	Feed size(mm)	Rotating speed(m/s)	Processing capacity (t/h)	Motor Power (kw)	Weight (kg)	Dimensions(mm)
HB-1000	40	45	133-174	110×2	17500	5710×2880×3150
HB-1000	40	50	181-220	132×2	17500	5710×2880×3150
HB-1200	40	45	185-240	132×2	18300	5710×2880×3150
	40	50	220-260	160×2	18300	5710×2880×3150
	40	50	255-300	185×2	18300	5710×2880×3150

Note: Parameters are subject to change without prior notice, please contact us.

Introduction to sand making machine:

Sand making machine, also known as sand making machine, Hengyuan·China-Phoenix based on the original high-performance HX series sand making machine, combined with the actual operation of the equipment under different working conditions and the feedback suggestions of the operators, the developed unit A crushing device with lower cost, higher crushing efficiency and intelligent operation control.

The machine significantly reduces the material flow resistance, improves the material passing ability, reduces the wearing rate of wearing parts, improves the energy utilization rate, and prolongs by improving the feeding mode, optimizing the crushing cavity type, adopting the new rotor design, and installing the lifting device. Maintenance cycle and shortened maintenance time.

Sand machine working principle:

After the material of the sand making machine is continuously conveyed to the distributor above the sand making machine, natural accumulation (full cavity feeding) is formed in the distributor, and then naturally falls from the center of the distributor and the surrounding to the sand making machine. Inside the chamber, the material entering from the center of the distributor enters the impeller, rapidly accelerates through the high-speed rotating impeller, and then ejects from the impeller with tens of times of gravitational acceleration. The material that is thrown at a high speed first completes the secondary impact crushing (stone stone) with the material falling freely from the periphery of the distributor, and then impacts together on the inner shield of the vortex chamber to complete the second crushing (stone striking). The material that continues to impact the perimeter panel is continuously bounced back and again collided with the material ejected from the center of the impeller at high speed to form a continuous uninterrupted fracture. Thus, after a piece of material is crushed by multiple impacts in the vortex chamber, the finished product is removed by the discharge opening below the sand making machine.

Sand machine performance characteristics:

1. Excellent launch port and smoother curved design inside, reduce the flow resistance of materials, greatly improve the material passing ability, and the crushing efficiency is higher;

2. The optimized design of the bulk tray and hydraulic device realizes the combination of the waterfall type feeding and the center feeding, and the adjustment of the center feeding amount is more convenient, so that the materials in the crushing chamber are fully broken;

3. Optimized motor frame structure, motor frame and observation and maintenance platform integrated design, compact structure, stable and reliable operation;

4. The perimeter guard plate is assembled with two upper and lower parts. It can be used after being worn, which can prolong the service life of wear parts and reduce operating costs.

5. The motor base adopts hydraulic adjustment and control components to ensure that the forces on both sides of the main shaft are consistent;

6. The upper cover lifting arm and lifting device are all hydraulically controlled, and the replacement of wearing parts is more convenient and quicker;

7. It adopts oil-free seal leakage-proof structure design and multi-pipe thin oil lubrication to achieve simultaneous lubrication of upper and lower bearings, which significantly improves bearing life cycle;

8. Bring your own vibration detection and alarm device. If the equipment malfunctions, you can issue a warning and the equipment will stop working quickly to achieve the purpose of protecting the machine.

9. Thin oil lubrication station, double oil pump complements to ensure oil supply, automatic detection of oil quantity, no oil flow, no oil pressure, automatic shutdown.

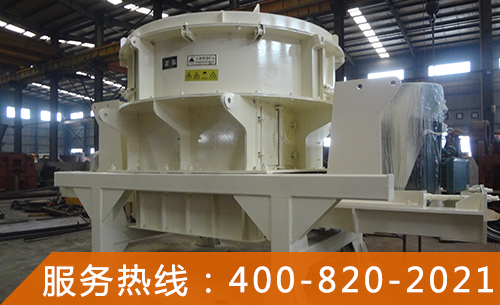

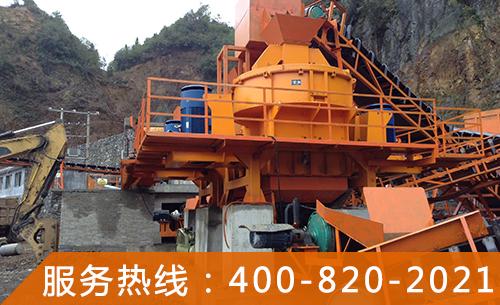

Sand machine factory picture:
